LED63000 Ultra-Thin Lightbar Series: The Thinnest R65 Certified Benchmark for 360° Warning

Product Overview

The LED63000 Ultra-Thin Lightbar Series stands as the thinnest full-size lightbar model in the domestic market to achieve R65 certification. Designed as a premium warning solution for high-end vehicles, it combines "optical precision, aesthetic design, and an ultra-thin profile" into one cohesive unit. Strictly adhering to the GB13954-2009 standard and meeting the rigorous optical requirements of R65, this series features a low-drag design and powerful performance. It is the preferred choice for highway patrol and special utility vehicles, widely recognized in the industry for demonstrating top-tier R&D capabilities in warning technology.

Innovative Design & Dimensions

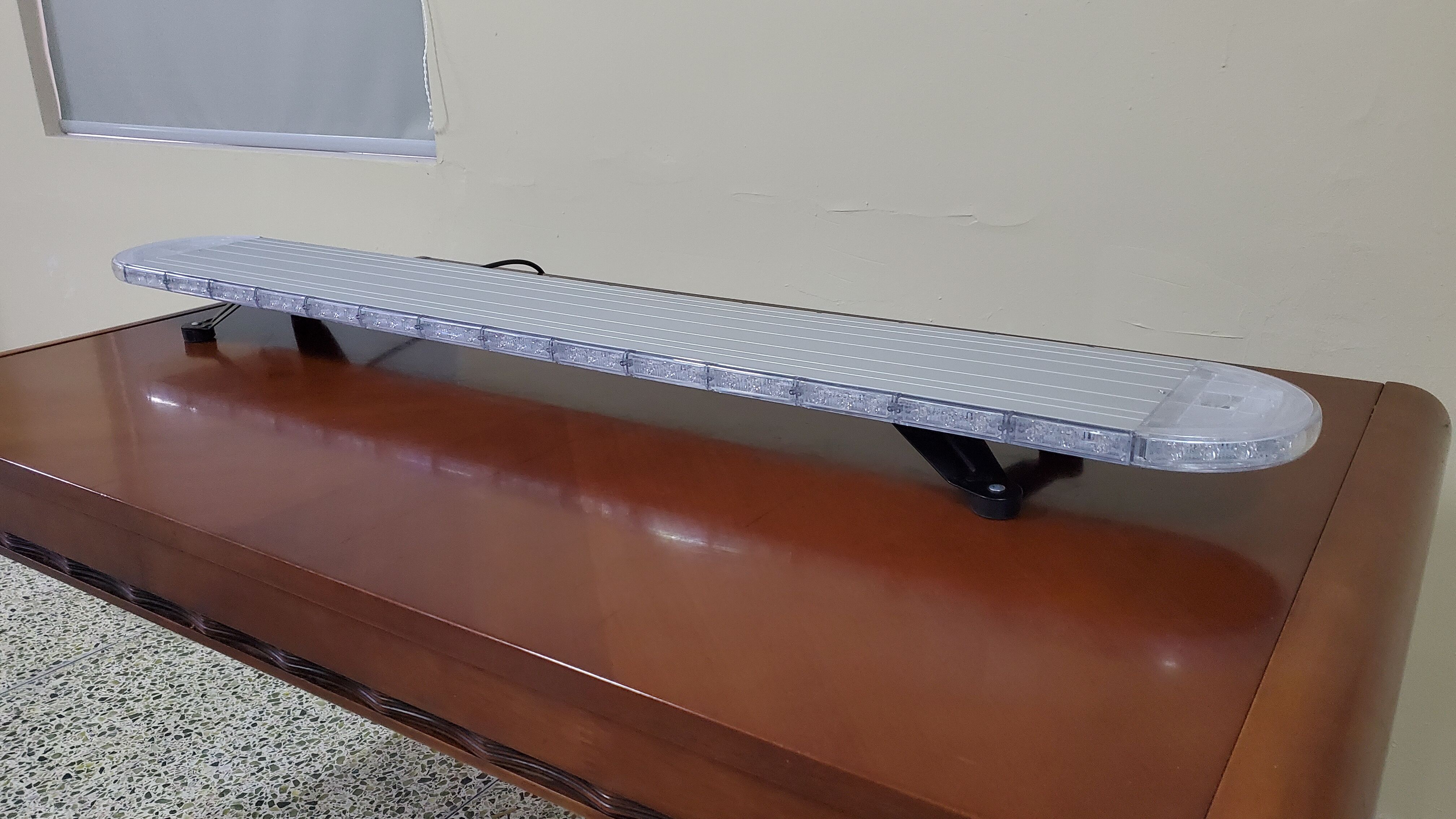

This flagship series achieves a breakthrough in dimensional design. With a height of only 95mm, it is the thinnest R65-certified lightbar available domestically. The fixed width of 220mm and the ultra-low profile naturally minimize wind resistance, perfectly meeting the strict aerodynamic requirements of high-speed vehicles.

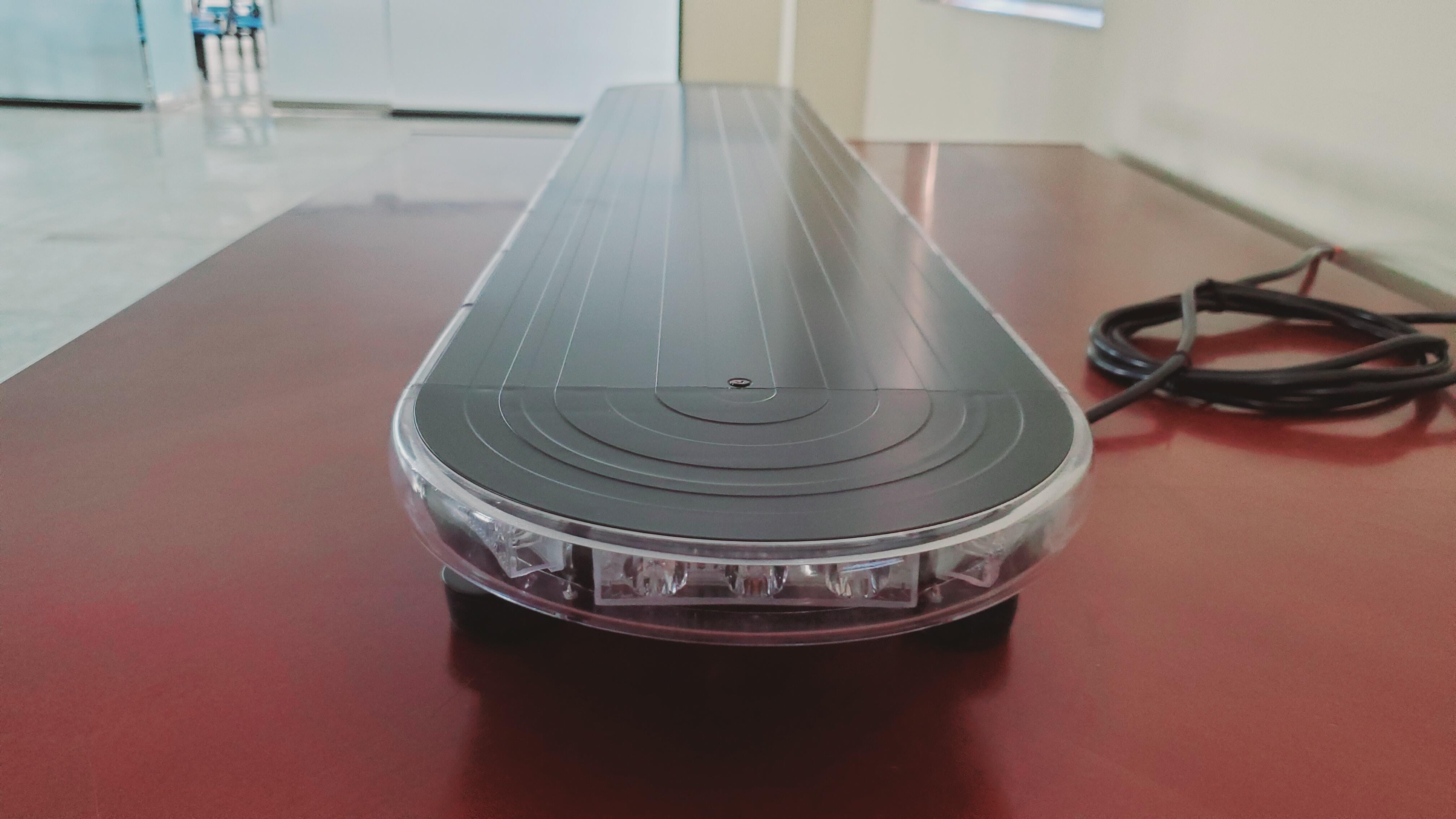

• Aesthetic & Functional: The unit features standard semi-circular ends, creating a harmonious blend of classic lines and streamlined styling that balances visual appeal with practicality.
• Size Options: The series offers a comprehensive range of lengths to suit various vehicle sizes: 780mm, 875mm, 970mm, 1065mm, 1160mm, 1255mm, 1350mm, 1445mm, 1540mm, 1635mm, and 1730mm. (Please contact us for specific net and gross weights).

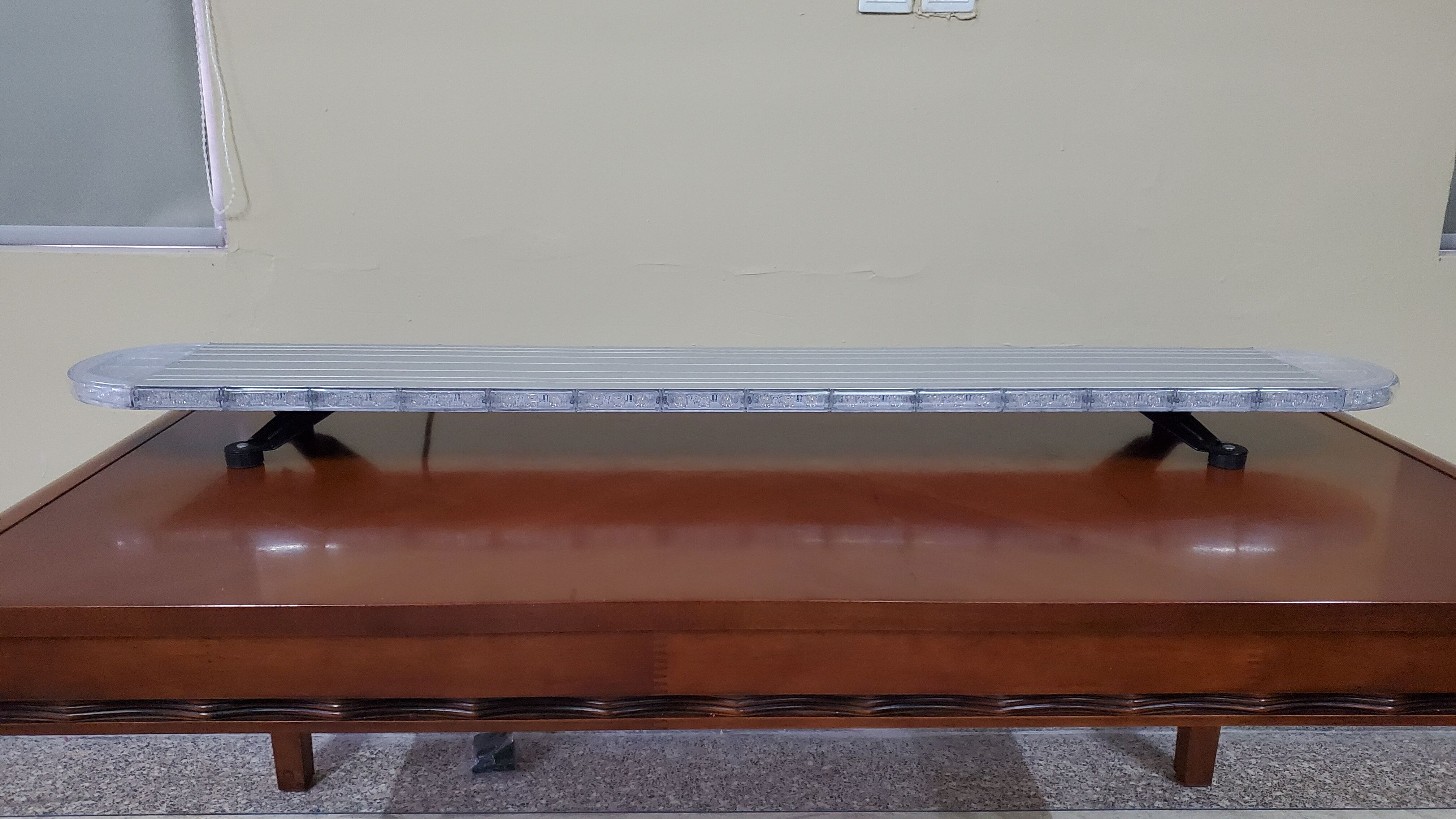

Mounting: Compatible with bracket hooks (standard) or magnetic mounts (short models), it requires no complex modifications. It provides a stable fit for everything from small utility cars to medium-sized special vehicles.

Superior Optical Performance

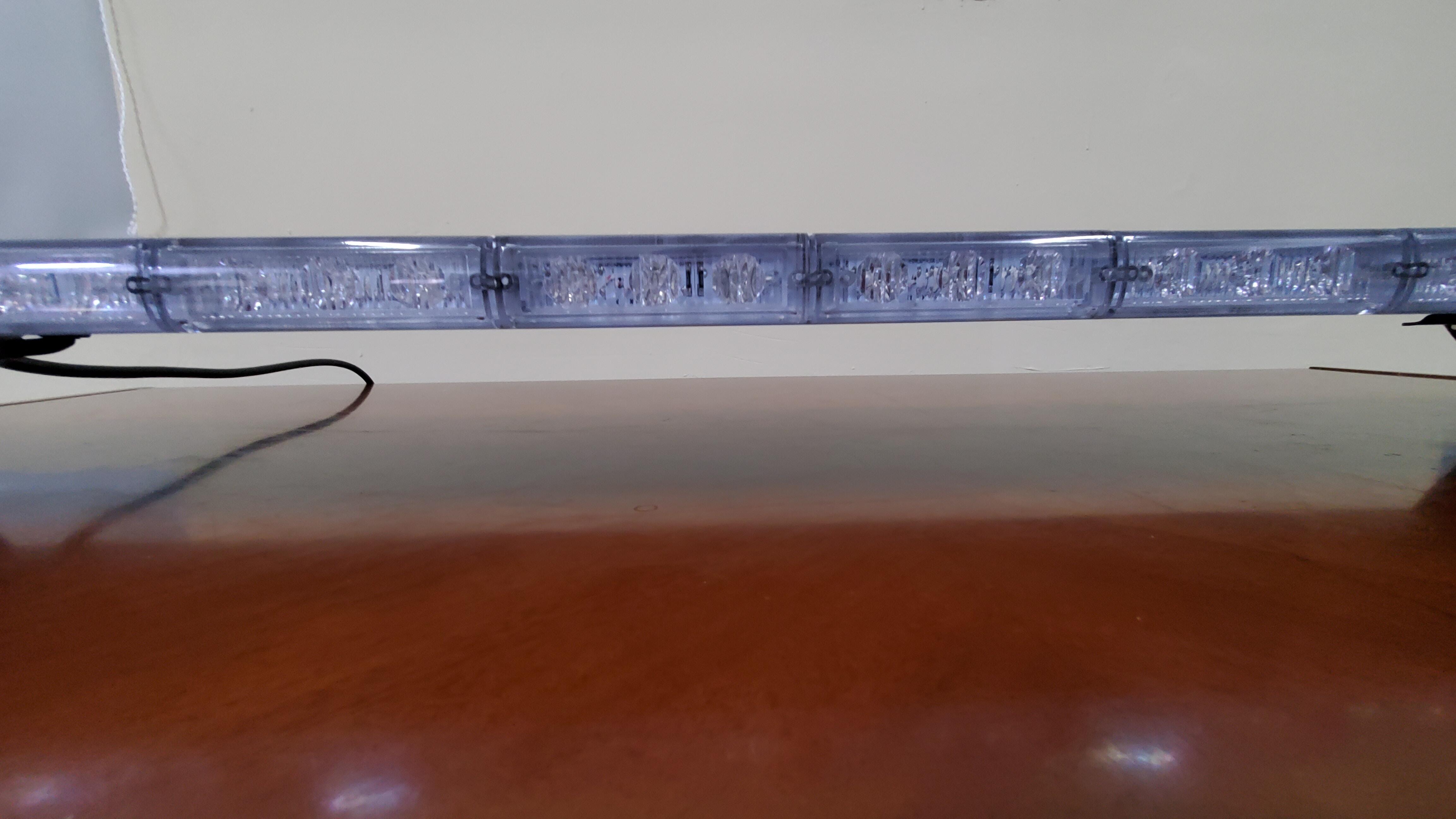

To ensure maximum warning effectiveness, the optical design is precision-engineered. The internal layout of the light-emitting units perfectly aligns with the semi-circular structure, strictly following R65 optical standards.

• 360° Coverage: Delivers a full 360-degree light signal with no blind spots on the horizontal plane, ensuring rapid identification even at high speeds or in complex road conditions.
• Intelligent Control: A single-chip microcontroller (MCU) stabilizes the flash pattern at 2~4Hz. It supports customized multi-level programs to precisely control each unit, maximizing signal distinctiveness and ensuring operational safety.


Core Technical Specifications

The LED63000 Series adheres to high-end quality standards with robust internal configurations:

• LED Power: Options include 0.5W, 1W, and 3W (Standard configuration is 1W).
• LED Count: Depending on the length, the unit contains between 54 and 114 LEDs, providing high brightness and stability.
• Voltage: Wide compatibility range of DC 10~30V, matching various vehicle power systems without the need for modification.
• Electrical Specs: Equipped with a 10A/15A fuse and a 6.3*6 male interface. The design utilizes a bracket-negative polarity ground.
• Operating Temperature: Engineered to withstand extreme environments ranging from -40℃ to +50℃.

Rugged Durability & Thermal Management

The housing features a high-quality aluminum alloy upper and lower structure, providing exceptional resistance to pressure, impact, and weather.

• Structural Integrity: The unit can withstand 60kg of pressure at the center without fatigue or deformation, maintaining mechanical strength despite its thin profile.
• Thermal Efficiency: Leveraging the superior heat dissipation properties of aluminum alloy, the design extends the LED source life by over 30% under standard current, ensuring long-term high luminous efficiency and electrical reliability.
• Weatherproofing: A reliable sealed waterproof design ensures consistent performance in harsh outdoor environments, solving common issues related to aging and failure.

Integrated Audio & Customization

As a customizable sound-and-light integrated device, the LED63000 Series offers optional siren upgrades:

• Siren: Can be customized with a built-in 100W Neodymium Iron Boron (NdFeB) external magnet speaker, delivering strong penetration and wide coverage.
• Sync: When connected to a controller, it achieves synchronized audio and visual warnings. This significantly improves warning effectiveness in noisy or long-distance scenarios compared to light-only signals.

Installation & Control

Designed for user convenience and efficiency:

• Installation: Rapid and secure roof mounting via bracket hooks or magnets. Power is drawn directly from the vehicle system, eliminating the need for extra power equipment.
• Operation: Users can select from various controller types. Switches for sound and light modes can be improved conveniently within the cab, allowing drivers to switch modes instantly based on operational needs.

Color Configurations

The LED63000 Series supports custom LED colors to match specific industry regulations:

• Colors Available: Red, Blue, Amber, and White.
• Applications: Precisely matches requirements for municipal operations, fire and rescue, engineering construction, and emergency road assistance. This ensures compliance while guaranteeing high visibility in specific working environments.
