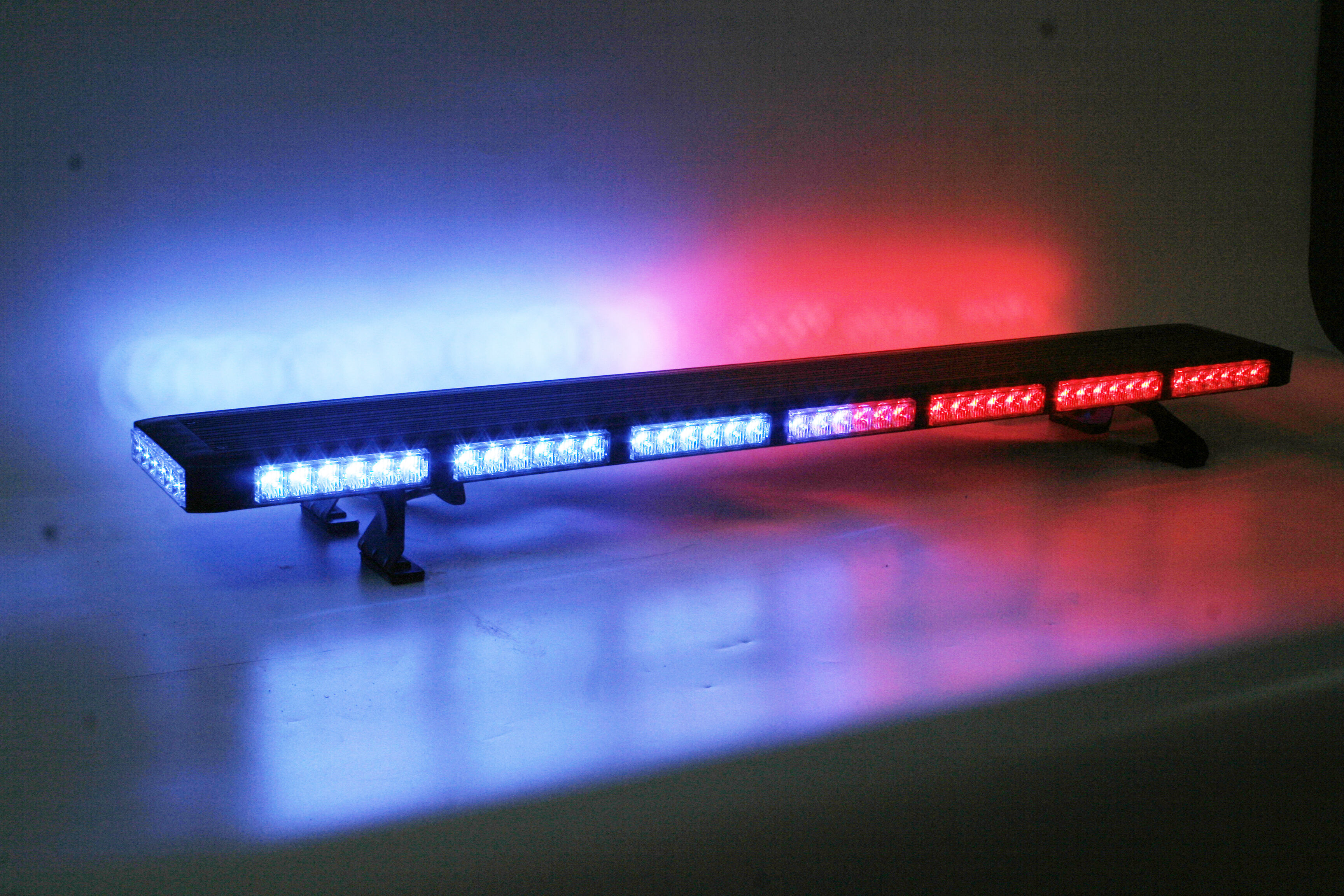

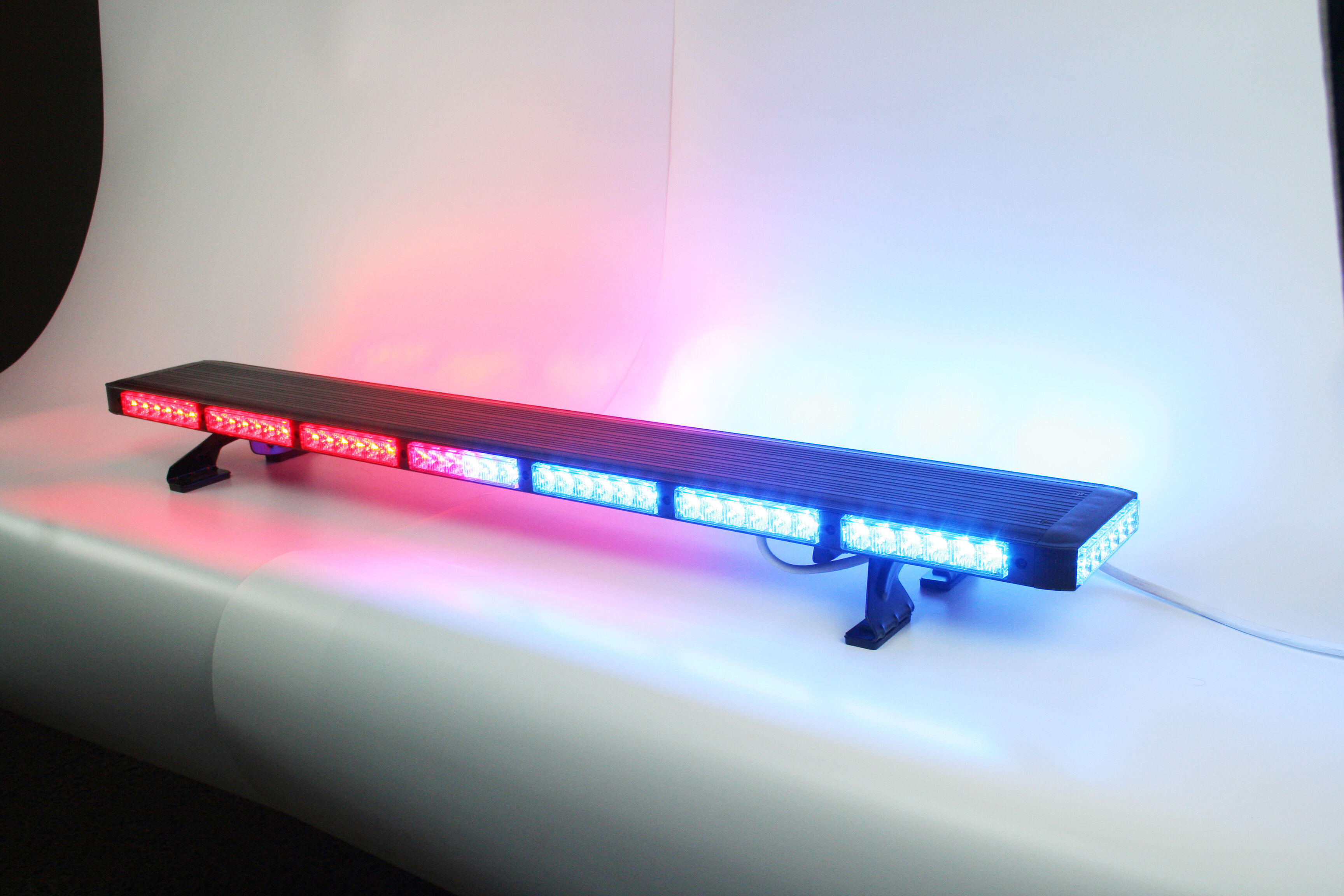

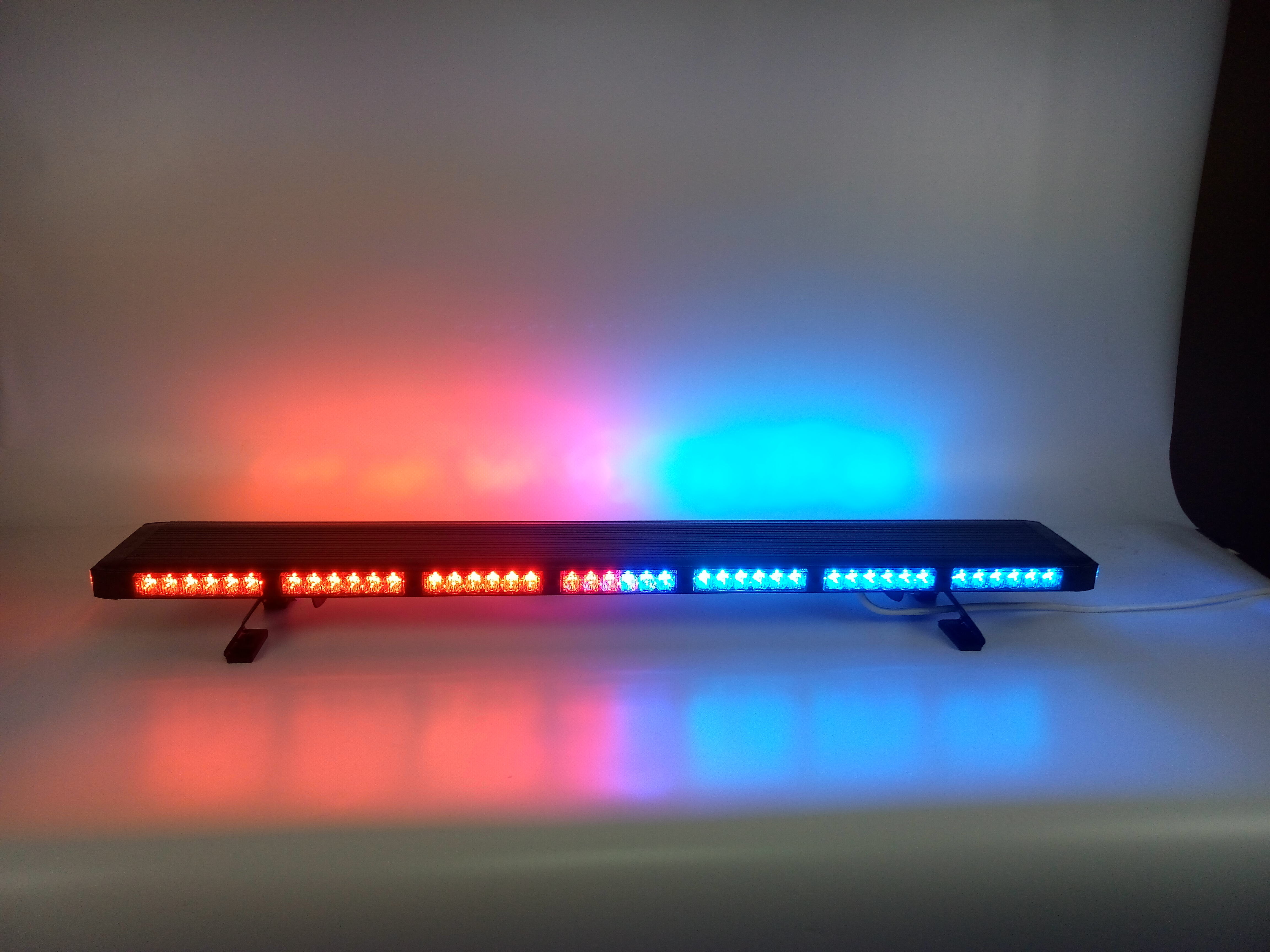

Upgraded Aluminum Alloy Integrated Audio-Visual Warning Light
The LED62000 Series Long Lightbar is an upgraded aluminum alloy integrated audio-visual warning product. It is a vehicle-mounted warning device compliant with European ECE R65 standards, specifically designed for special vehicle warning requirements. The product strictly follows both GB13954-2009 and GB8108-2014 national standards, achieving comprehensive upgrades in material craftsmanship, heat dissipation performance, and audio-visual warning configuration.
The product features an aluminum alloy main structure as its core highlight, combining excellent mechanical strength with high heat dissipation efficiency. Equipped with a built-in siren speaker, it realizes integrated audio and visual warning. With advantages such as high reliability and long service life, it has become a preferred warning solution for municipal operations, fire rescue, and engineering construction scenarios, and is widely recognized by industry users.
Dimensions and Model Variations
The upgraded lightbar balances diversity and compatibility in its dimensional design.
Depending on different LED module combinations, the product is divided into two main series with multiple length options.
Full Six-Module Series
Available lengths:
560 mm, 720 mm, 880 mm, 1030 mm, 1190 mm, 1350 mm, 1500 mm, 1660 mm, 1800 mm
Mixed Four- and Six-Module Series
Available lengths:
672 mm, 791 mm, 909 mm, 1028 mm, 1147 mm, 1266 mm, 1385 mm, 1504 mm, 1623 mm
Net weight and gross weight vary by configuration and are available upon request.
Installation Methods
The installation is flexible and convenient.
No complex vehicle modification is required, allowing stable installation on various types of special vehicles.
Optical Layout and Flash Control
To achieve maximum illumination coverage, the lightbar adopts a scientifically optimized circular internal layout.
This design ensures 360° horizontal coverage without blind spots.
Through a microcontroller-based control circuit, the lightbar provides a stable flash frequency of 2–4 Hz and supports custom multi-level programs, enabling precise control of each LED module’s operating status. This enhances signal recognition in complex environments and helps surrounding vehicles and personnel respond quickly, maximizing operational safety.
Core Electrical Configuration
The LED62000 Series adheres to high-quality standards with continuous upgrades.
LED quantity:
The rated voltage is DC 9V / DC 30V, making it compatible with various special vehicle power systems without additional modification.
The product is equipped with 10A / 15A fuses, a 6.3 × 6 cm connector, and a negative-ground mounting bracket design. It supports a wide operating temperature range of -40°C to +50°C, ensuring stable performance under extreme climate and working conditions.
Aluminum Alloy Housing Performance
The upper and lower housing structures are made of high-quality aluminum alloy, providing excellent compression resistance, impact resistance, and weather resistance. The housing can withstand 60 kg of pressure without fatigue deformation.
With superior thermal conductivity, the aluminum alloy structure can extend LED lifespan by more than 30% under the same current conditions, maintaining long-term luminous efficiency and significantly improving electrical reliability. This effectively addresses aging issues during long-term outdoor use.
Integrated Siren Function
As an integrated audio-visual warning device, the LED62000 Series comes standard with a built-in siren system.
Speaker impedance: 16Ω
Power rating: 80W
Sound pressure level: ≥118 dB (2 m, A-weighted)
When connected to a controller, synchronized audio and light warning can be achieved. Compared with visual-only warning, this configuration further expands the warning range and enhances warning effectiveness, especially in noisy working environments.
Installation and Control Design
The design emphasizes both practicality and convenience.

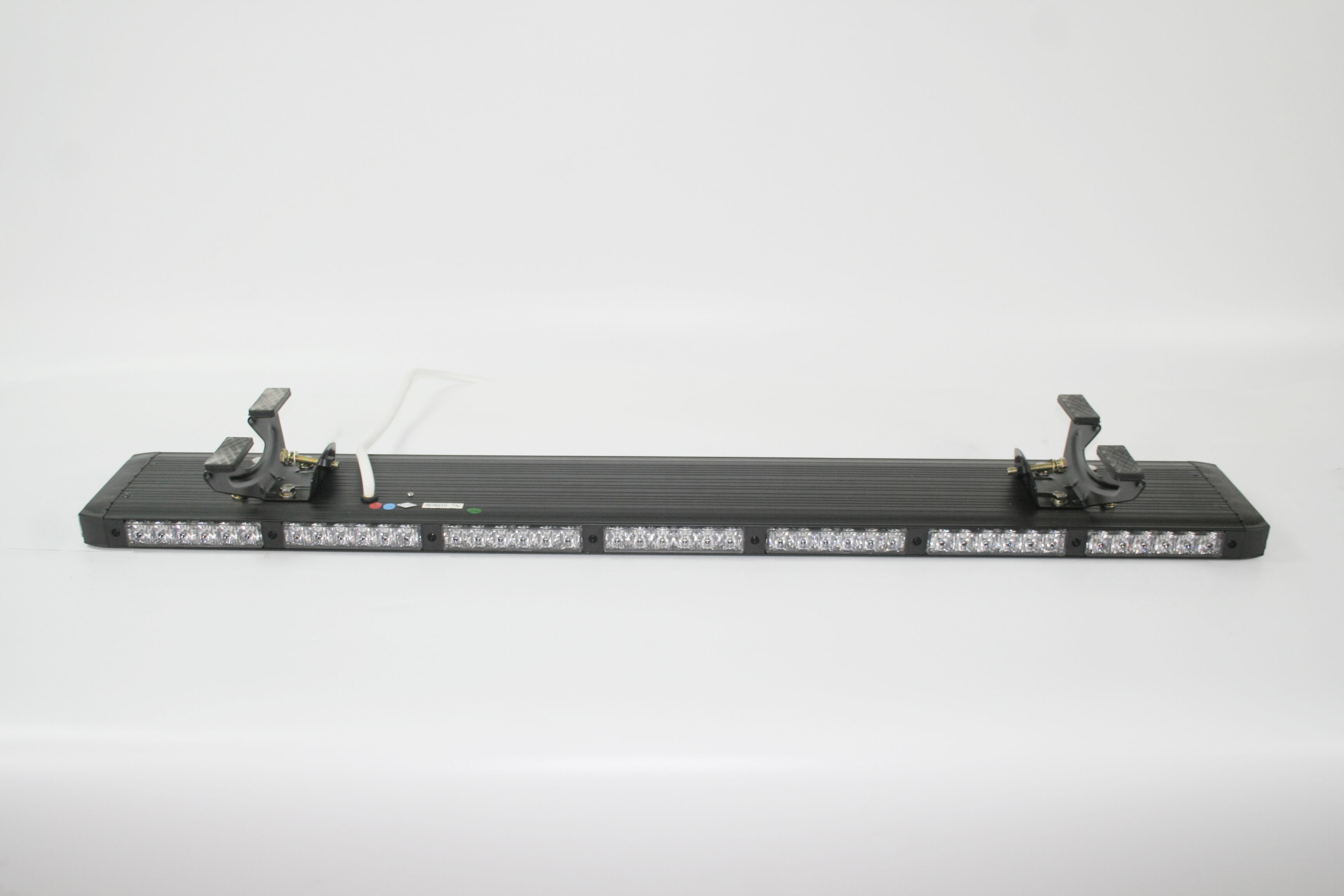

The lightbar can be quickly mounted on the vehicle roof using mounting brackets or magnetic bases (short models). Power is directly connected to the vehicle power system without additional power equipment.
Controller selection is flexible, and other controller types can be optionally matched as needed. The control switches for audio and visual signals can be conveniently installed inside the vehicle cabin, allowing drivers to adjust modes according to operational requirements and improving overall efficiency.
Color Options
The LED62000 Series offers multiple color options to adapt to different application scenarios.
These options meet various special operation compliance requirements while ensuring high visibility in different environments.
